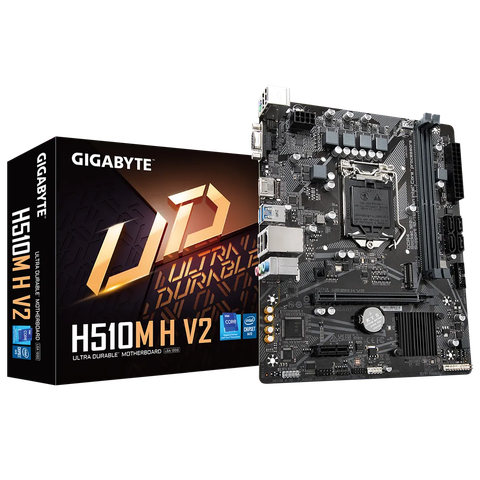

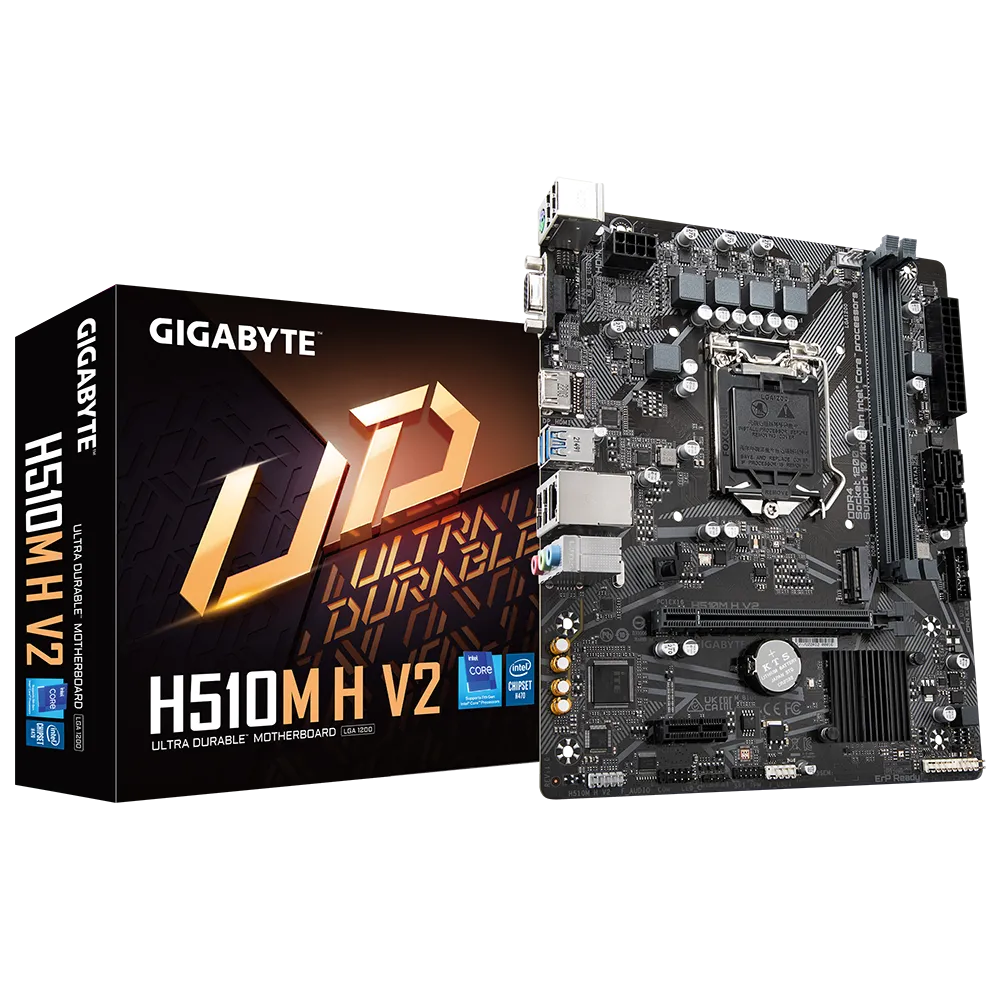

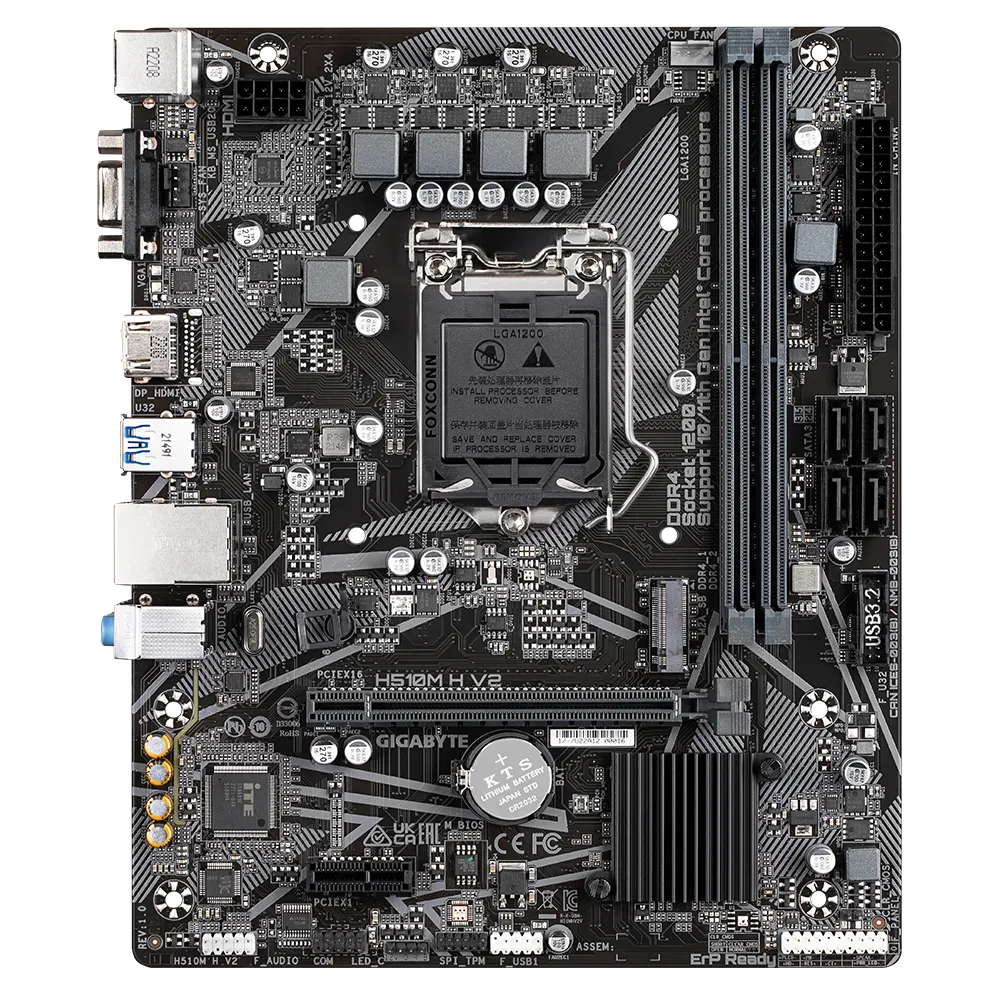

Mainboard Gigabyte H510M H v2 | LGA1200

CPU

1. i3/ i5/ i7/ i9 đời thứ 11th
2. Celeron/ Pentium/ i3/ i5/ i7/ i9 đời thứ 10th
3. L3 cache varies with CP

Chipset

1. Intel® H510 Express Chipset

Bộ nhớ

1. 11th Generation Intel® Core™ i9/i7/i5 processors:
   Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules
2. 10th Generation Intel® Core™ i9/i7 processors:
   Support for DDR4 2933/2666/2400/2133 MHz memory modules
3. 10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® processors:
   Support for DDR4 2666/2400/2133 MHz memory modules
4. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
5. Dual channel memory architecture
6. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
7. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
8. Support for Extreme Memory Profile (XMP) memory modules

Card đồ họa tích hợp

1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
   * Support for HDMI 1.4 version and HDCP 2.3.
2. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
   * The D-Sub port is only available with the 10th Generation processors.

Âm thanh

1. Realtek® Audio CODEC
2. High Definition Audio
3. 2/4/5.1/7.1-channel
   * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

LAN

1. Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

Khe cắm mở rộng

1. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16

1. 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Giao diện lưu trữ

1. 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support)
2. 4 x SATA 6Gb/s connectors

USB

1. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
2. 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Kết nối I/O bên trong

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x CPU fan header
4. 1 x system fan header
5. 1 x RGB LED strip header
6. 1 x M.2 Socket 3 connector
7. 4 x SATA 6Gb/s connectors
8. 1 x front panel header
9. 1 x front panel audio header
10. 1 x USB 3.2 Gen 1 header
11. 1 x USB 2.0/1.1 header
12. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
13. 1 x serial port header
14. 1 x Clear CMOS jumper

Kết nối bảng phía sau

1. 1 x PS/2 keyboard/mouse port
2. 1 x D-Sub port
3. 1 x HDMI port
4. 2 x USB 3.2 Gen 1 ports
5. 4 x USB 2.0/1.1 ports
6. 1 x RJ-45 port
7. 3 x audio jacks

Điều khiển I/O

1. iTE® I/O Controller Chip

Theo dõi phần cứng

1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Fan fail warning
5. Fan speed contro
   * Whether the fan speed control function is supported will depend on the cooler you install.

BIOS

1. 1 x 128 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Tính năng duy nhất

1. Support for APP Center
   * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
   @BIOS
   Ambient LED
   EasyTune
   Smart Backup
   System Information Viewer
2. Support for Q-Flash
3. Support for Xpress Install

Gói phần mềm

1. Norton® Internet Security (OEM version)
2. LAN bandwidth management software

Hệ điều hành

1. Support for Windows 11 64-bit
2. Support for Windows 10 64-bit

Hệ số khuôn

1. Micro ATX Form Factor; 22.6cm x 18.5cm
